Deploy a CI/CD Pipeline via GitLab Self-Hosted

This guide walks you through deploying a CI/CD pipeline using a self-hosted GitLab instance on Elestio.

Prerequisites

Before you begin, make sure you have:

  • A running self-hosted GitLab instance (e.g. https://gitlab.example.com)

  • A Personal Access Token (PAT) with the api scope (see note below)

  • A repository hosted on your GitLab instance

  • An active project in Elestio

⚠️ Important: Only the api scope is required. Additional scopes like read_repository or read_user are not necessary when api is enabled.

You can follow our documentation to generate the PAT.

Step 1: Select Deployment Method

  1. Open your project in the Elestio dashboard

  2. Navigate to CI/CD → Create Pipeline

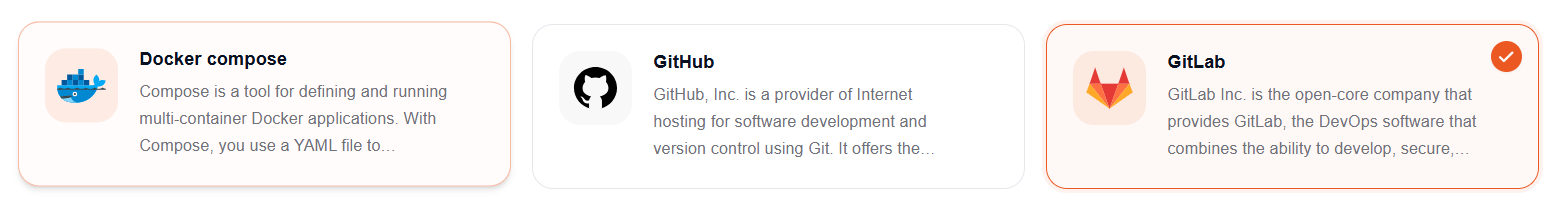

  3. Under Deployment Method, select GitLab


Step 2: Choose Hosting Type

After selecting GitLab, choose your hosting type:

Option Description
Cloud Connect to GitLab.com via OAuth
Self-Hosted Connect using your own GitLab instance and PAT

Select Self-Hosted to continue.


Switching between Cloud and Self-Hosted will reset previously selected repositories and settings.

Step 3: Connect Your Self-Hosted GitLab Instance

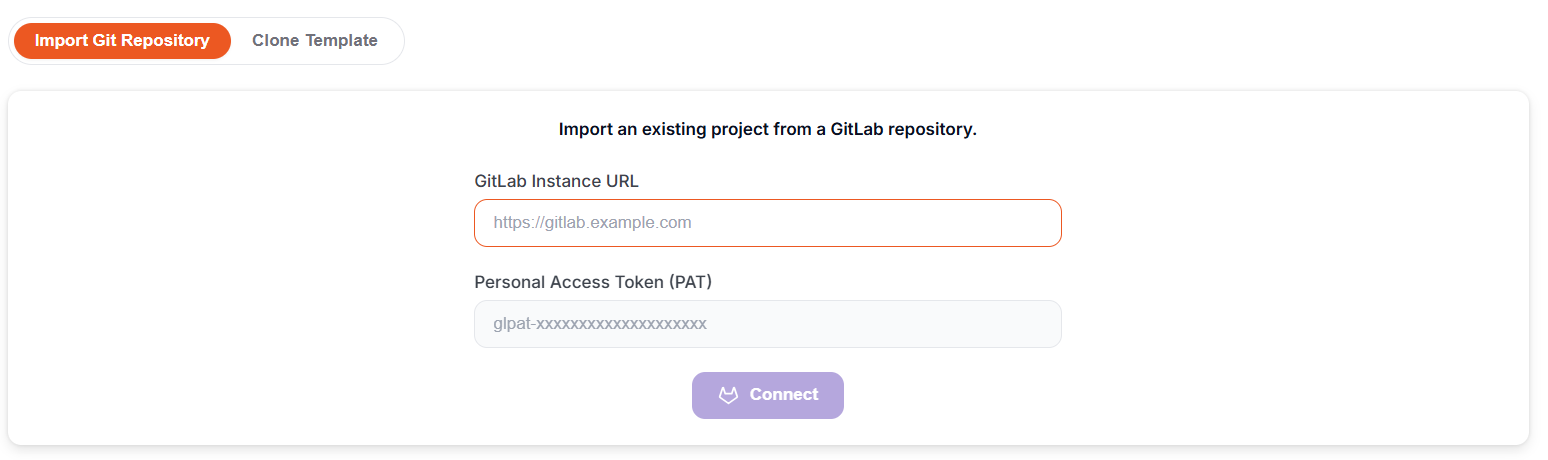

Enter your connection details:

  1. GitLab Instance URL

    • Example: https://gitlab.example.com

    • Must include protocol (http:// or https://)

    • No trailing slash

  2. Personal Access Token (PAT)

    • Paste your token (glpat-xxxxxxxxxxxx)

    • Field is masked for security

  3. Click Connect


Expected result

  • ✅ Connected message:
    “Connected as [username] on [instance URL]."

  • Repository selection UI loads automatically

If connection fails

Check:

  • Instance is publicly reachable

  • Token includes api scope

  • Token has not expired

Step 4: Select a Repository

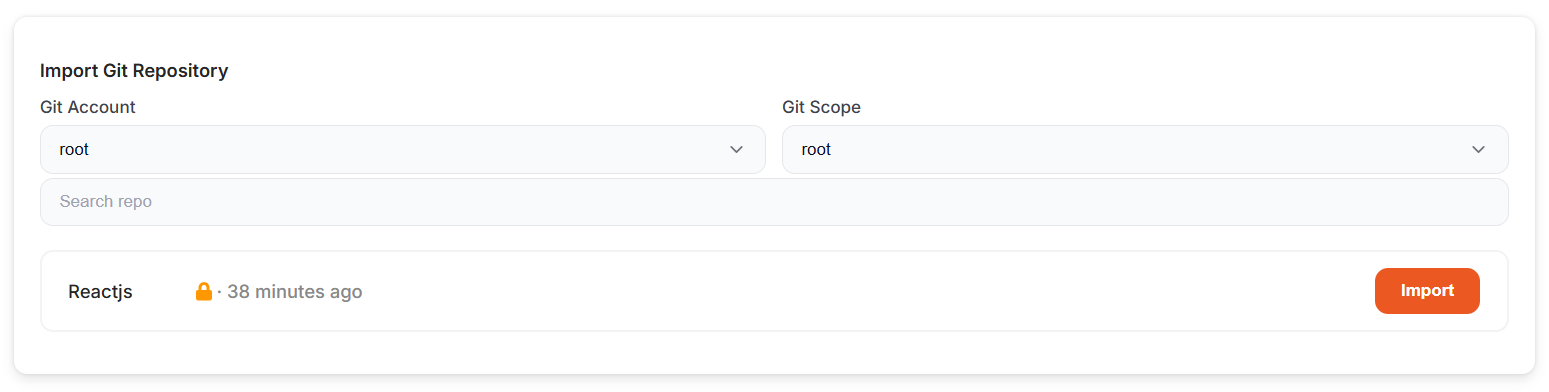

Once connected, the Import Git Repository section appears.

  1. Git Account

    • Your connected account is pre-selected

    • Use Add Git Account to connect another instance

  2. Git Scope (if available)

    • Select a user, group, or organization

  3. Repository List

    • Search or browse repositories

    • Private repos show a 🔒 icon

    • Click "Import" on your chosen repository


Now, click "Next," then choose the cloud provider, region, and plan. After that, configure the pipeline settings by selecting the application type, runtime, and port configuration to proceed with the deployment.





Adding Additional Self-Hosted Accounts

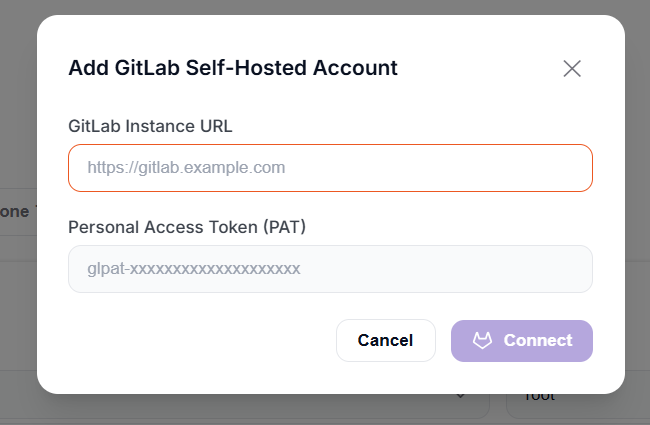

To connect another GitLab instance:

  1. Open the Git Account dropdown

  2. Click Add Git Account

  3. Enter:

    • Instance URL

    • Personal Access Token (api scope)

  4. Click Connect

The new account becomes active immediately.


Troubleshooting
Issue Likely Cause Fix
Connection fails Invalid URL or token Verify URL format and regenerate the PAT.
No repositories listed Missing api scope Recreate token with api
Branch not found Empty repo or wrong branch Ensure branch exists and has commits
